Zyxel Dual Band Symm Repeater

SKU: 150705
GTIN: 4718937649099
HAN: QSYMREPEATER-EUQ300F
Category: Office & Production Buildings 500 - 1500 m²

Version

Prices visible after login

This item has variations. Please select the requested variation.

Description
Notify me when this item is available

We connect you

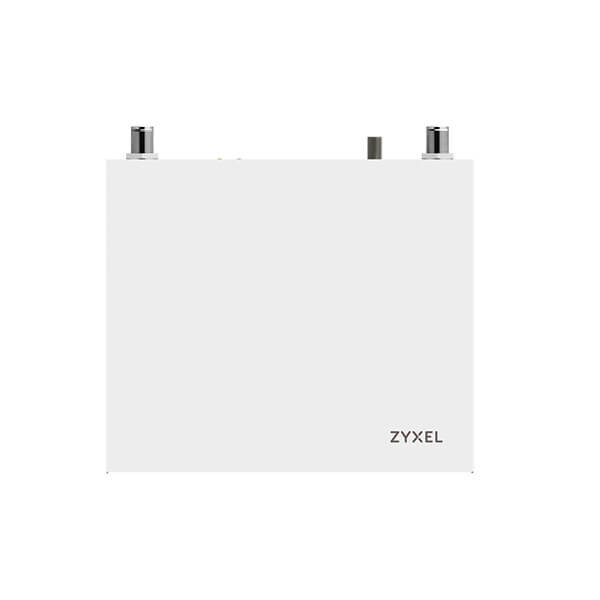

Zyxel Dual Band Symm Repeater

High-performance dual-symmetric cellular repeater for stable 2G/3G/4G/5G coverage in buildings. Ideal for offices, hotels, industrial sites, retail spaces, underground garages and basement areas.

Highlights

Dual-band support – targeted amplification of two frequency bands (e.g. B1/B20, B3/B8, etc.), depending on variant and network.

Dual-symmetric architecture – active amplification on both donor and service paths for high stability and range.

Automatic gain control – auto-gain and protection functions reduce overdrive and feedback.

Large indoor coverage – depending on configuration, up to more than 2,500 m² possible.

Rugged design – donor unit weather-resistant (IP65), service unit for indoor use.

Fast installation – easy planning, flexible antenna topologies.

Technical Data Applications

Short Description

The Zyxel Dual Band Symm Repeater improves in-building mobile coverage by capturing, processing and redistributing the outdoor (donor) signal efficiently indoors (service). With its symmetric signal routing and finely adjustable gain, the system provides reliable voice quality and stable data rates even in challenging environments.

What does “dual-symmetric” mean?

Both the path from the roof (donor) to the building and the indoor distribution (service) are actively amplified. This minimizes cable losses and ensures consistent levels across long distances.

2G/3G/4G/5G (FDD) Dual-Band IP65 Donor Auto-Gain Indoor Coverage

Technical Data (Excerpt)

Supported Technologies	2G, 3G, 4G, 5G DSS (FDD); NB-IoT depending on variant
Band Combination	Dual-band, selectable (e.g. B1/B20, B3/B8, B28/B1 …) – depending on network and model
Max. Gain	up to approx. 100 dB (model-dependent, fine-tunable)
Indoor Coverage	up to > 2,500 m² (depends on planning & environment)
Signal Path (End-to-End)	typically up to 500 m between donor and service
Output Power (DL)	typically up to ~17 dBm per band (model-dependent)
Donor Protection Class	IP65 (suitable for outdoor installation)
Latency	< 3 µs (end-to-end)
Connectors	N-Type / 50 Ω (model-dependent); power supply according to specification

Specifications may vary by model or region. For a specific project, please specify the desired band combination and performance variant.

Applications

Underground garages, basements, production halls
Retail areas, office buildings, hotels & hospitals
Educational and administrative buildings
Buildings with heavily attenuated outdoor signals

Planning & Installation Notes

Band selection: choose bands according to local network coverage and provider.
Antenna planning: donor antenna with clear line of sight; distribute indoor antennas evenly.
Cable routing: minimize losses using high-quality 50 Ω coaxial cables and short runs.
Avoid feedback: ensure sufficient antenna spacing & correct level adjustment (use auto-gain).
Documentation: record measurements and levels after commissioning.
